Stories

The model

A story is an ordered list of chapters. Each chapter binds:

• narrative blocks: heading, paragraph, list, pull quote, callout, stat chip, image, video, table, embed, divider, spacer, SVG, code, caption
• a beat: camera, per-layer visibility/opacity/filter, annotations, highlights, basemap, terrain and time (Beats & camera)
• an optional visual beat: swap the sticky pane to an image, video, SVG scene, before/after swipe or a chart, then back to the map
• a transition: fly, ease or jump, with layer crossfade
• optional scroll tweening: camera and layer opacity interpolated against scroll progress rather than snapped on entry

The map never scrolls away. Scroll drives map state, not map position on the page.

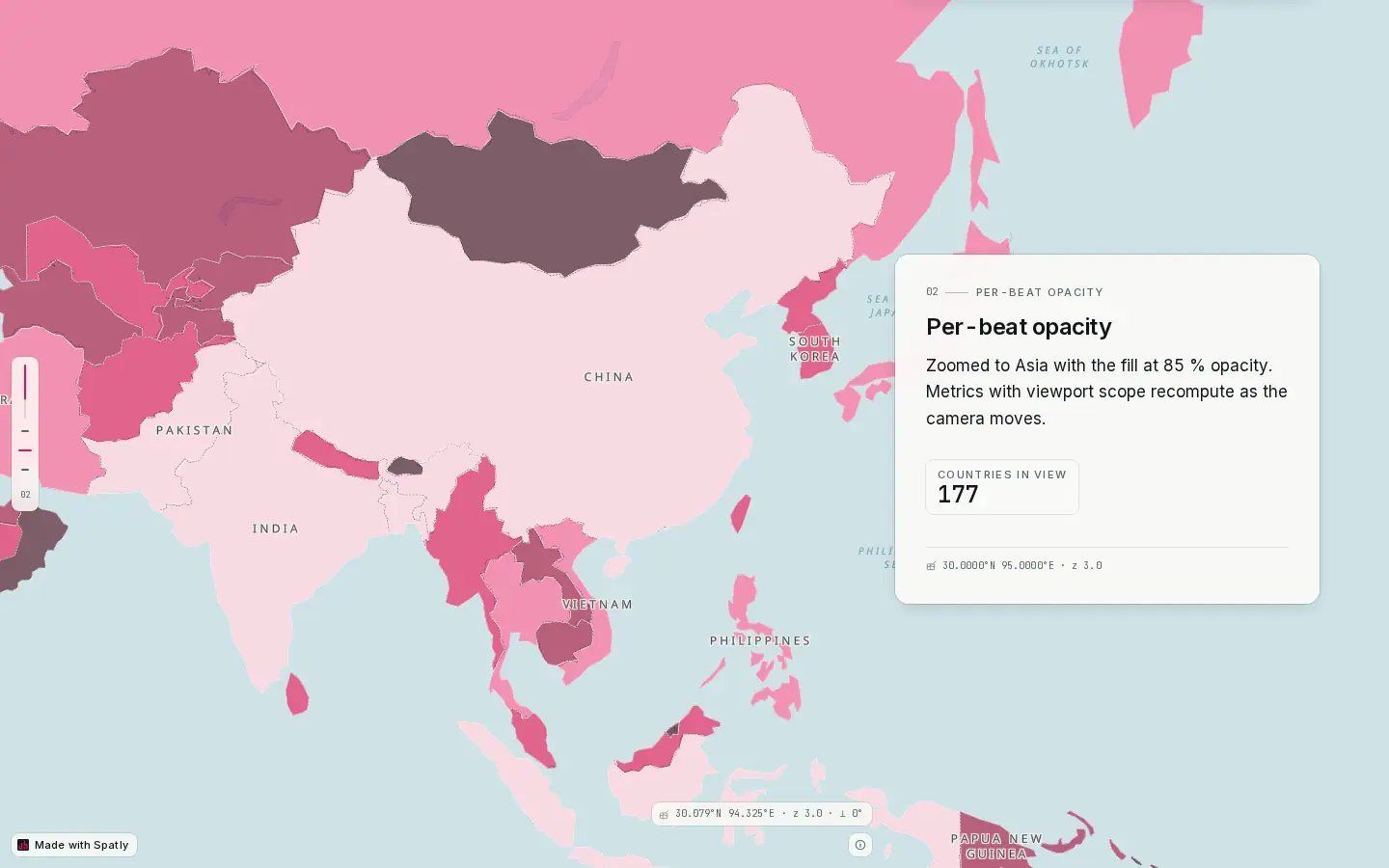

The viewer

123456

1. 1Sticky map: it stays put; each chapter changes what it shows, not where it is on the page.
2. 2Chapter card: glass over a dark map, paper over a light one, capped at about 60 characters per line.
3. 3Progress rail: one tick per chapter, with the active chapter marked. Clicking a tick jumps there.
4. 4Stat chip: a live metric inside the narrative. It carries its own as-of stamp.
5. 5Coordinate stamp: the beat's centre and zoom in mono. On a phone it collapses to an icon you can tap.
6. 6Made with Spatly: bottom-left, removable on paid plans.

Layouts

Story-level props: glass (glass vs solid panel), progressBar, chapterNav, hero plus title / subtitle / byline / coverBeatId, and mobile (stacked or fullbleed). Per chapter you can override layout, panel.width, panel.side, panel.align and panel.glass.

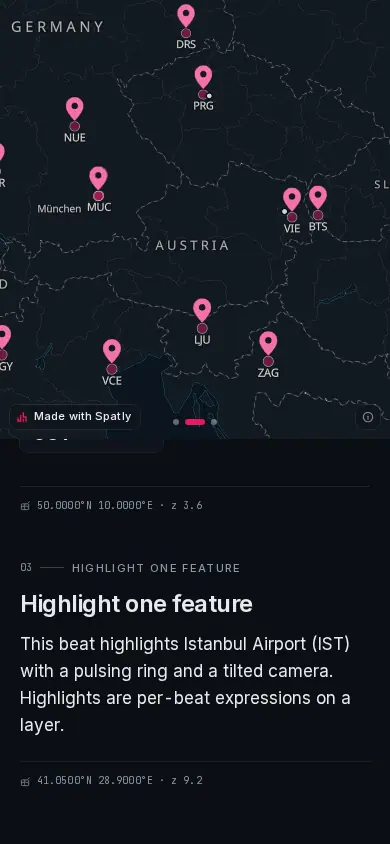

123

1. 1Sticky map header: about half the viewport; beats still fly.
2. 2Chapter: full width beneath the map, one column, larger tap targets.
3. 3Coordinate stamp: collapsed to an icon; tap to open.

Check the phone layout while you author it: the Preview width switch in the top bar has a phone preset, and it renders the real mobile layout rather than a narrow desktop one.

The chapter editor

The Studio canvas is the published runtime. Click text to edit it in place; the block menu is on /; @ mentions a layer, feature or KPI.

• Click a chapter in the Scenes rail → the map flies to its beat.
• Drag chapters to reorder. [ and ] step.
• Move the map, press Save beat (B). Duplicate & nudge for the next chapter.
• Per-chapter layer visibility, opacity and filters in the beat inspector.
• Per-chapter design (typography scale, panel width, glass vs solid, alignment) in the block inspector.

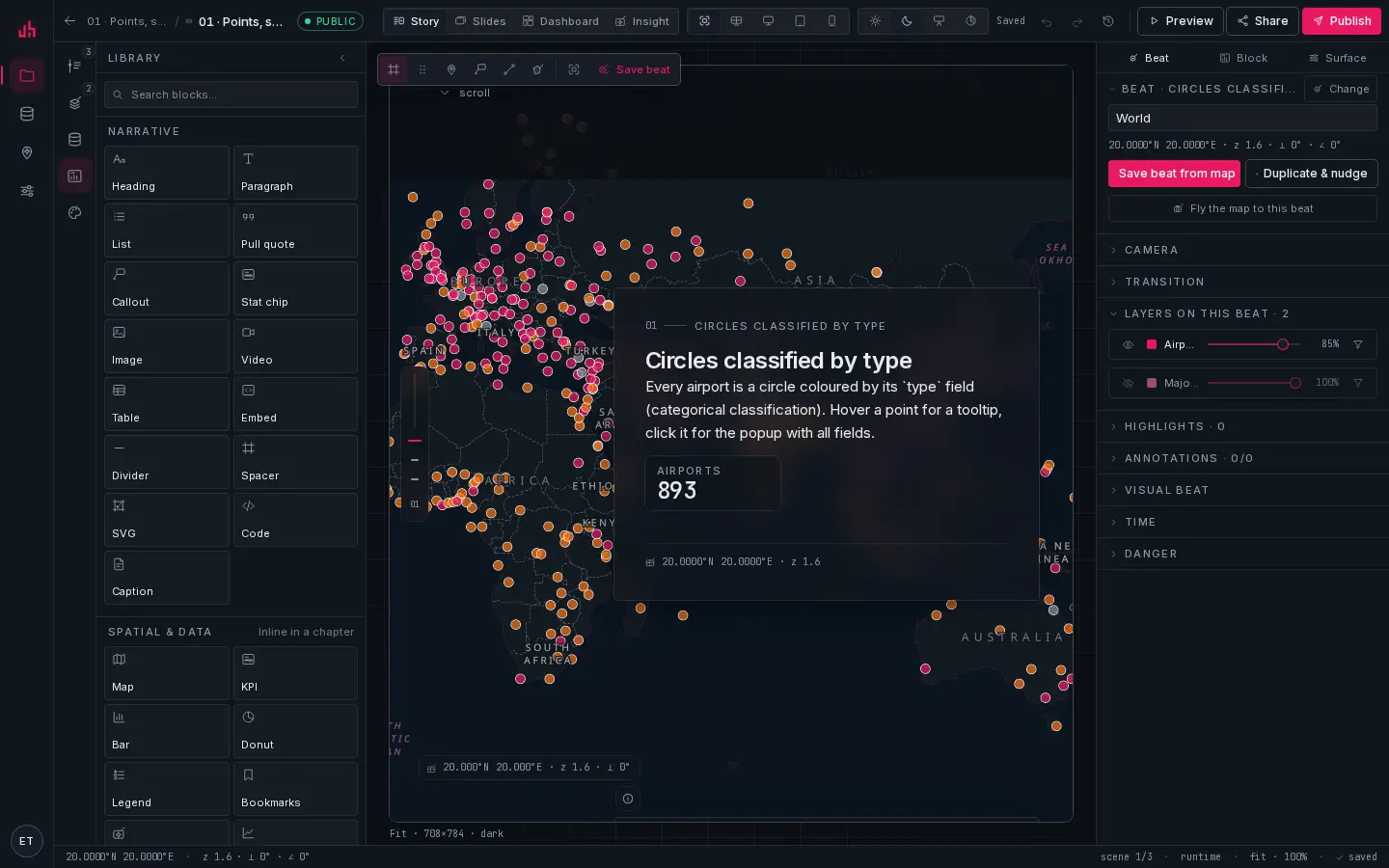

1234

1. 1Search blocks: type to narrow the list.
2. 2Narrative: heading, paragraph, list, pull quote, callout, stat chip, image, video, table, embed, divider, spacer, SVG, code, caption.
3. 3Spatial & data: a map, KPI, chart, legend or bookmark strip placed inline in a chapter, not only on dashboards.
4. 4Canvas: drag a block onto the chapter to place it; drop a map marker onto the map to drop a pin at that longitude and latitude.

Scroll choreography

By default a chapter snaps on entry: the transition runs once as the chapter reaches the reading line. With scrollTween the chapter interpolates towards the next one as you scroll:

import { interpolateCamera, interpolateLayerStates } from "@spatly/schema";

const cam = interpolateCamera(beatA.camera, beatB.camera, progress);                        // bearing on the shortest arc
const states = interpolateLayerStates(beatA.layerStates, beatB.layerStates, progress, ids); // opacity and reveal lerp

Use it where the movement is the point: a slow zoom into a district, or a layer that fades up as the paragraph explains it. Use snapping everywhere else; a story where everything tweens feels seasick.

Spatial mentions

Type @ in text to mention a layer, a feature, a KPI or a beat. Mentions stay live: a @kpi renders the current value with an as-of stamp, a @feature highlights on the map when the reader hovers it, and a @beat is a link that flies the map.

Stat chips

A stat chip is a metric in the flow of the text: a label, a big number and an as-of stamp. Bind it to any metric in the project.

Snapshot or live

Per layer, choose frozen (the copy taken at publish) or live (the viewer polls the source). Stories default to frozen so an old story keeps saying what it said. Set the layers you want to move to live explicitly.

Deep links

Each chapter is addressable: https://spatly.io/s/<publicId>#ch=3. Copy view link in the viewer writes the current beat as ?beat=. A deep-linked load scrolls instantly rather than smoothly, so the reader lands on the right chapter even before tiles and fonts settle.

Convert to slides, and back

Story → Slides turns each chapter into a slide bound to the same beat; Slides → Story does the reverse. Nothing is copied in the database. Both surfaces reference the same beats, so editing a beat updates both. Find it in the surface switch menu in the top bar.

Accessibility and motion

• prefers-reduced-motion → transitions become jumps, highlights stop pulsing.
• The narrative column is a normal document: headings nest, links are links, images take alt text from the block.
• In view mode the map does not capture the wheel, so scrolling over the map still scrolls the story. Hover, click and feature popups still work.
